Chip thinning happens when a light radial stepover forces the actual chip thickness below the feed per tooth you programmed, which means the tool is rubbing instead of cutting cleanly. The fix is to compute a chip-thinning correction factor and raise your feed per tooth (fz) so real chip thickness lands back in the target range your tool manufacturer recommends. Do that, and you can often run table feed far higher than a naive setup would suggest. The formulas, thresholds, and a couple of worked examples follow below.
TL;DR:
- Correcting for chip thinning can significantly increase table feed rates, often doubling the original programmed feed when properly adjusted.
- Both radial and axial chip thinning depend on engagement geometry, with formulas involving the ratio of stepover to cutter diameter or the approach angle for ballnose cutters.
- Conducting a test cut after applying the correction verifies machine capability and prevents tool breakage by observing chip shape, color, and spindle load.
- Automated calculators streamline the math, pulling data from tool databases to provide safe, optimized feed adjustments and alerting to inappropriate use cases.
- Starting with a conservative correction and gradually increasing feed allows shops to improve productivity without risking tool damage or quality issues.
Table of Contents
- What Chip Thinning Actually Means on the Shop Floor
- The Formulas and Variables Behind the Correction
- How to Calculate and Apply the Corrected Feed
- Reading the Signs: Practical Checks and Failure Modes
- Two Worked Examples You Can Check by Hand
- How Calculators Automate the Chip-Thinning Math
- Why More Shops Should Be Using This
- Try Availzye Machinist Pro's Chip-Thinning Calculator
- Sources
- FAQ
What Chip Thinning Actually Means on the Shop Floor
Chip thinning is a geometry problem, not a magic productivity hack. When the radial width of cut (ae) drops below roughly half the cutter diameter, the tool only engages a shallow arc of material, and the actual maximum chip thickness (hmax) ends up smaller than the feed per tooth you told the machine to run. That is radial chip thinning, and it is the version most machinists run into daily on light-stepover roughing passes.
There is a second, less discussed version: axial chip thinning, which shows up on ballnose cutters and round insert tools where a shallow axial depth near the tool's tip changes the effective chip thickness because of the cutter's curved geometry rather than its stepover.
Both versions boil down to the same practical distinction:
- Feed per tooth (fz) is what you program: the linear distance the cutter advances per tooth per revolution.
- Chip thickness (h) is what actually happens at the cutting edge, and it depends on engagement geometry, not just your programmed number.
Ignore that gap and you end up running feeds too conservative for the tool, generating heat through friction instead of removing metal through a clean shear.
The Formulas and Variables Behind the Correction
Get the variables straight first. ae is radial width of cut, D is cutter diameter, fz is programmed feed per tooth, hmax is actual maximum chip thickness, z is flute count, and n is spindle rpm. Keep all length units consistent (millimeters with millimeters, inches with inches) or the correction factor comes out wrong.
The radial chip thinning factor, often written Kr, is derived from the ratio of stepover to diameter. As ae/D shrinks, Kr grows, and you multiply your baseline fz by Kr to get the corrected feed per tooth (fz_adj) that restores your target chip thickness. The detailed radial and axial formulas show the full derivation along with worked calculator examples for both cases.
For ballnose and round insert cutters, you need the Axial Chip Thinning Factor (ACTF) instead, which accounts for approach angle rather than stepover ratio.
| Variable | Meaning | Applies to |
|---|---|---|
| ae / D | Stepover ratio | Radial chip thinning (Kr) |
| Approach angle | Engagement angle at cutter tip | Axial chip thinning (ACTF), ballnose/round insert |
| fz vs hmax | Programmed vs actual chip thickness | Both |
One caveat matters more than any formula: full-width slotting and straight plunging don't get a chip-thinning correction.
How to Calculate and Apply the Corrected Feed
Here's the repeatable sequence:
- Pick your target chip thickness (ht) from the tool manufacturer's data sheet or material chart.
- Calculate ae/D for your actual stepover, then find Kr (or ACTF for ball/round tools).
- Multiply: fz_adj = fz × Kr.
- Convert to table feed using vf = n × z × fz_adj.
- Enter fz_adj or the resulting vf into your CAM feed parameters or directly into the G-code feed word.
- Run a single test pass before committing to the full program.
That vf conversion is where the payoff becomes visible. The GARR TOOL chip thinning reference walks through a numeric case where the corrected table feed comes out roughly double the uncorrected value. This happens all while chip load stays inside the safe range the tool was designed for.

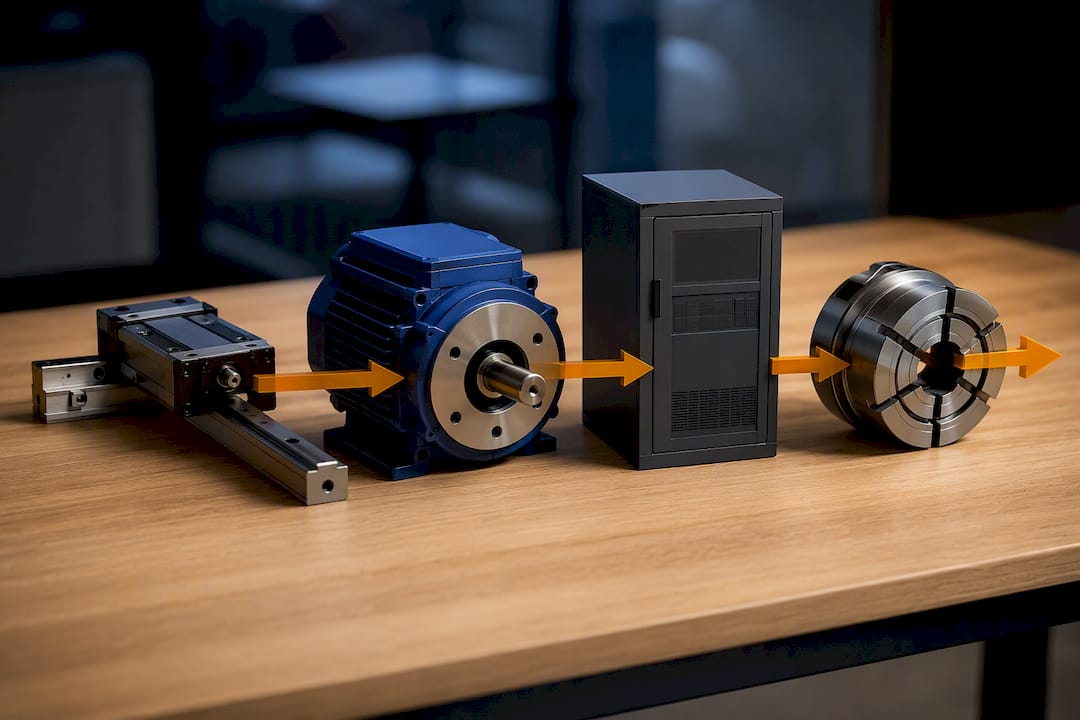

Before you commit to the higher number, confirm four things: axis acceleration can actually reach that feed within your toolpath's short moves, spindle horsepower covers the higher metal-removal rate, the controller can process blocks fast enough at that feed, and your tool holder has the grip to handle the resulting cutting forces. A feeds and speeds tool handles the arithmetic; your machine's spec sheet and your own ears handle the judgment calls.
It takes two minutes and saves you a broken end mill.*
Reading the Signs: Practical Checks and Failure Modes
Your first corrected cut tells you almost everything. Watch for:
- Chip shape and size: you want tight commas or curls, not dust or long stringy ribbons.
- Chip color: straw or light blue on steel signals heat buildup; silver to gray means you're cutting, not rubbing.
- Spindle load percentage: a sudden climb past your normal baseline flags an over-correction.
- Sound: a steady, consistent tone beats a screech or an intermittent chatter bark.
- Surface finish: chatter marks or a dull, torn finish usually mean the corrected feed outran your machine's rigidity, not that the formula was wrong.
Before you push feed any higher, confirm your machine's horsepower curve actually supports the new metal-removal rate, that acceleration and controller look-ahead can hit target feed within short toolpath segments, and that your holder and collet aren't the weak link in the chain. Loose vises and thin-walled fixtures amplify vibration exactly when you've raised table feed, so tighten your setup review right alongside the math.
The most common mistake is applying the same correction to a pocket-clearing pass and a finishing pass that has almost no stepover left. Back off feed the moment you see chatter start, rather than waiting for a tool to snap to tell you.
Pro Tip: If chatter shows up only in corners where the toolpath tightens engagement, your CAM software's arc-fitting or corner-slowdown settings are the fix, not a lower baseline feed.
Two Worked Examples You Can Check by Hand
- Radial case: a 10 mm, 4-flute end mill running at 10% radial engagement (ae = 1 mm) needs its baseline fz multiplied by a radial factor that, at that shallow stepover, comes out several times higher than 1. A calculator working through this exact ratio shows fz_adj landing multiple times above the uncorrected value, and at 8,000 rpm that translates directly into a much higher table feed once you run vf = n × z × fz_adj.
- Ballnose case: a round insert cutter taking a shallow axial pass near its tip uses ACTF instead of Kr, following the same multiply-and-convert logic but driven by approach angle rather than stepover ratio.
In both cases, expect spindle load to sit close to where it was before correction. If chips come out thin and blue after the fix, you undercorrected; if load spikes and chips go thick and curled, you overcorrected.
How Calculators Automate the Chip-Thinning Math
A calculator earns its keep here because the inputs are simple but easy to fat-finger under shop pressure: cutter diameter, stepover, target chip load, rpm, and flute count go in; corrected fz, table feed, and a warning if you're pushing past a sane engagement ratio come out.
- Automated calculators flag inappropriate use cases, like full-slotting or plunging, before you apply a correction that doesn't belong there.
- Integration with a stored tool database means the target chip load per material pulls in automatically instead of getting retyped from memory each time.
- Direct export to CAM or G-code removes the manual transcription step where a misplaced decimal turns a safe feed into a tool-breaking one.
Availzye Machinist Pro's chip-thinning calculator works this way, pulling tool and material data from its own tool database and flagging machine-limit warnings alongside the corrected feed output. None of that replaces a test cut. Run one, watch the load meter, and adjust from there.
Why More Shops Should Be Using This
Plenty of shops leave metal-removal rate on the table because raising programmed feed sounds like a fast way to snap a tool. That fear is understandable and mostly wrong once you've actually run the math. Shops that adopt radial chip thinning with the right tooling and dynamic toolpaths tend to see real cycle-time drops, not marginal ones.
The move worth making is testing a chip-thinning correction on a real pocket-roughing job this week, not reading about it and shelving it. Start with a conservative stepover, verify the math, then push.
— Availzye
Try Availzye Machinist Pro's Chip-Thinning Calculator
You've now got the formulas, the workflow, and the failure signs, which is exactly what a calculator needs from you to run the math correctly the first time. Availzye Machinist Pro's chip-thinning tool takes cutter diameter, stepover, target chip load, and flute count, then outputs corrected feed per tooth, table feed, and a flag if you're approaching a machine or holder limit, using the same tool database that stores your shop's actual tooling data instead of generic defaults.
![CTA Image]
Pair the corrected feed with the feeds and speeds calculator to check the whole cutting parameter set at once, and once you're confident in the numbers, export the program straight through the G-code generator. Still run a test cut and watch your spindle load before committing to the full toolpath. A free trial is available, so you can validate this on a real job before deciding if the software subscription fits your needs.
Sources
- Chip Thinning: Calculators and Formulas (Radial and Axial)
- Reaping benefits of radial chip thinning
- GARR TOOL - Chip Thinning
FAQ
How Does Chip Thinning Work?
Chip thinning happens because a shallow radial stepover or axial engagement reduces the arc of contact between the cutter and the workpiece, which makes the actual maximum chip thickness smaller than the feed per tooth you programmed. You correct it by multiplying your baseline feed per tooth by a radial or axial chip-thinning factor to restore the target chip thickness.
How Do I Calculate Chip Thickness in Milling?
Chip thickness depends on your engagement geometry, so you calculate it by finding the ratio of radial width of cut to cutter diameter (ae/D), converting that into a chip-thinning factor (Kr), and multiplying it by your programmed feed per tooth to get the actual maximum chip thickness.
Is Chip Load the Same as Feed Per Tooth?
Not exactly. Feed per tooth (fz) is the number you program into the machine, while chip load usually refers to the actual chip thickness the cutting edge experiences, which shifts with stepover and engagement angle even if fz stays constant.
What Happens if Cutting Speed Is Too High?
Excess cutting speed relative to your tool and material combination drives up heat at the cutting edge, which accelerates tool wear and can trigger chatter or premature edge failure, especially when it's not paired with a correctly compensated feed per tooth.
